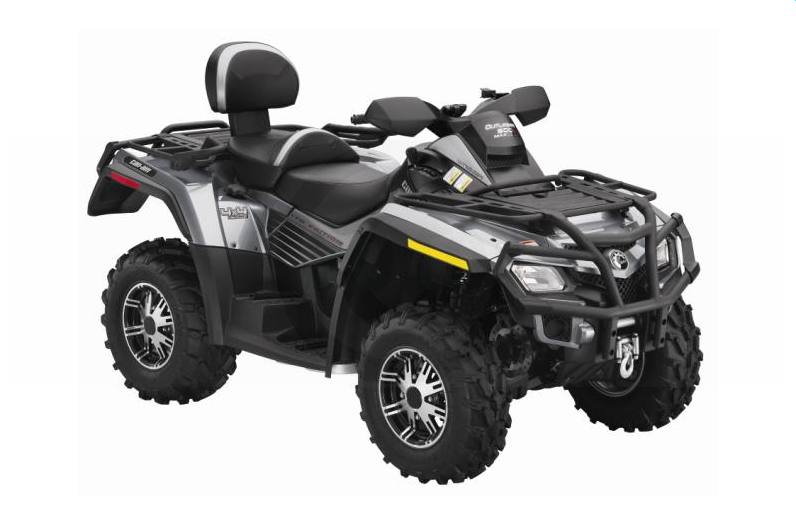

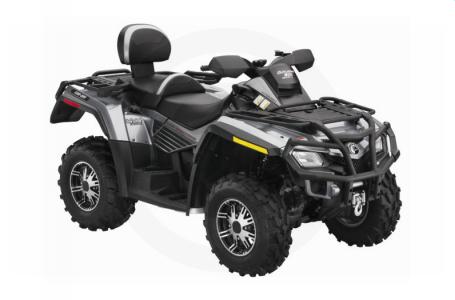

2010 Can-Am Outlander MAX 500 EFI LTD

Outlander Max 500 LTD

Now until September 30, 2010
$2,000.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

All the features you get with the Outlander MAX 800R EFI LTD, now powered by a 500 cc engine. Features like Air Control Suspension (ACS), the industry’s first suspension system that lets you customize your ride on the fly. Along with dual-mode Dynamic Power Steering (DPS™), cast-aluminum wheels, a Garmin nüvi 500 touchscreen GPS and quick-engaging Visco-Lok QE. It’s just the right combination of high-end and high-tech. And it’s a quad you have to experience to believe.

  • Rotax 500 EFI engine – 60 hp
  • New front fascia design
  • TTI independent rear suspension
  • MacPherson front suspension
  • Visco-Lok† auto-locking front differential
  • Continuously Variable Transmission [CVT]
  • Center skid plate
  • Multi-function digital gauge
  • Digitally Encoded Security System (D.E.S.S.)
  • Steel racks with 300-pound [136 kg] capacity
  • 25-inch radial tires with cast-aluminum wheels
  • Ergonomic passenger backrest
  • Convertible Rack/Seat System with totable storage box
  • Raised floorboards
  • Multi-position passenger handgrips
  • Driver lumbar support
Engine
  • Type: 499.6 cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
  • Bore & Stroke: 82 x 47 mm
  • EFI System / Carburetor: 46-mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
  • Drivetrain: Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
  • Frame: SST
  • Front Suspension Type: MacPherson
  • Front Travel: 7 in (178 mm)
  • Rear Suspension Type: TTI independent
  • Rear Travel: 9 in (229 mm)
  • Front Brake: 2 inboard hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: 25 x 8 x 12 in (635 x 203 x 305 mm)
  • Tires/Rear: 25 x 11x 12 in (635 x 279 x 305 mm)
  • Wheels: Cast-aluminum wheels
Dimensions
  • L x W x H (in): 94 x 46 x 45 in
  • L x W x H (mm): 2,387 x 1,168 x 1,143 mm
  • Wheelbase: 59 in (1,499 mm)
  • Seat Height: 34.5 in (877 mm)
  • Ground Clearance: 11 in (279 mm)
  • Dry Weight: 704 lbs (319 kg)
  • Towing Capacity: 1,300 lbs (590 kg)
  • Rack Capacity: 100 lbs (45 kg) 200 lbs (90 kg)
  • Storage: Rear storage 5.3 US gal (20 L)
  • Fuel Capacity: 4.3 US gal. (16.3 L)
Other Features
  • Instrumentation: Multi-function digital LCD gauge : speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meter, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
  • Anti-Theft: Digitally Encoded Security System (D.E.S.S.)
  • Electrical: Prewired for winch
  • Lighting: 2 fender mounted headlamps (35W) with tail light / brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Color(s) available: Steel Grey Metallic
LTD Package
  • New Garmin® nüvi® 500 touchscreen GPS
  • New rear Air Control Suspension (ACS)
  • New dual-mode Dynamic Power Steering (DPS)
  • New Visco-Lok QE
  • New LTD cast-aluminum wheels
  • New 650-watt magneto
  • BRP XL3000 winch with roller fairlead and wired remote control
  • Painted plastics
  • Aggressive Carlisle ACT radial tires
  • Heavy-duty front and rear bumpers
  • Mudguards
  • Handlebar wind deflectors
  • Premium 2-tone seat
  • Comfort grips
  • Chrome muffler trim

Specifications

Engine
Engine Type V-twin, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension MacPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Travel 9 in. (229 mm)
Rear Suspension TTI independent
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 11x 12 in. (635 x 279 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 704 lbs. (319 kg)
Front Rack Capacity 100 lbs. (45 kg) 200 lbs. (90 kg)
Towing Capacity 1,300 lbs. (590 kg)
Fuel Capacity 4.3 gal. (16.3 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in. (2,387 x 1,168 x 1,143 mm)
Wheelbase 59 in. (1,499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok† front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
General
Speedometer Digital LCD
Tachometer Digital LCD
Odometer Digital LCD
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Steel Grey Metallic

Compare Models

 Print








Year 2010
Manufacturer Can-Am
Model Outlander MAX 500 EFI LTD
Style Sport
MSRP* $11,999.00
Chassis
Front Suspension MacPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 11x 12 in. (635 x 279 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 704 lbs. (319 kg)
Front Rack Capacity 100 lbs. (45 kg) 200 lbs. (90 kg)
Rear Rack Capacity
Towing Capacity 1,300 lbs. (590 kg)
Fuel Capacity 4.3 gal. (16.3 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in. (2,387 x 1,168 x 1,143 mm)
Wheelbase 59 in. (1,499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok† front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
Engine
Engine Type V-twin, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Cylinders
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Digital LCD
Tachometer Digital LCD
Odometer Digital LCD
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Steel Grey Metallic
