New » Can-Am » Outlander Max 500 H.O. EFI 4x4
Model Quick Search

$8,099.00

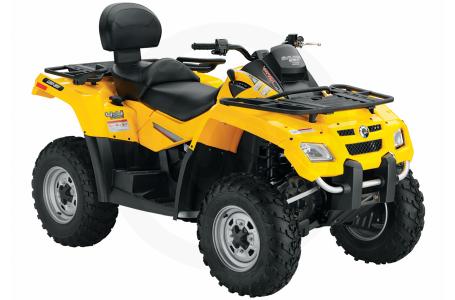

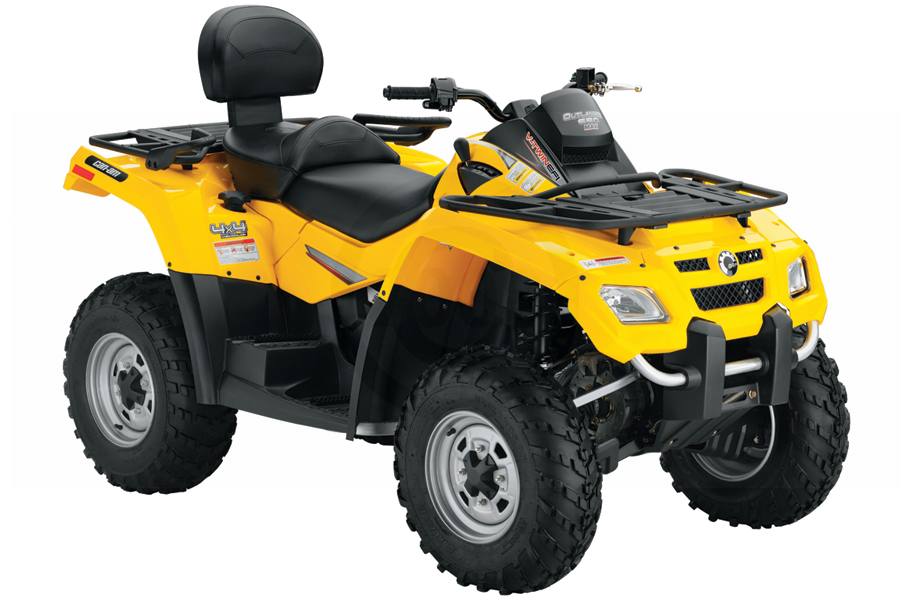

2008 Can-Am Outlander Max 500 H.O. EFI 4x4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

THE NEW MIDDLEWEIGHT CHAMPION.


The 500 H.O. EFI is a machine to be reckoned with. With 54% more power than Honda Rubicon 500, and even 22% more than the Polaris Sportsman 500 EFI, you can expect class-leading power, handling and performance every time you get on.


Plus, it has all the great Outlander features, such as, Visco-Lok automatic front differential, SST frame, TTI rear suspension and more.


Includes everything on the Outlander 500 H.O. EFI, specifically designed for two riders.

  • Rotax 500 H.O. EFI V-Twin engine - the industry's most powerful
  • Customized chassis with proactive riding position for passenger
  • Ergonomic passenger backrest
  • Multi-position passenger handgrips
  • Raised passenger floorboards
  • Convertible Rack/Seat system [CRS] with totable box
  • Ability to ride with passenger or one-up with added gear
  • Multi-function full digital gauge
  • 25-inch radial tires with steel wheels
NEW FOR 2008
  • Visco-Lok features a new quicker engagement
  • New Multi-function full digital gauge
  • Redesigned rear fascia, taillight and regulator cover
  • Restyled painted steel rims (on base models)
  • Redesigned CVT compartment for better sealing against moisture
  • More comfortable handgrips
  • 500 lbs additional winch capacity (now 3000 lbs/1,361kg) (on XT models)
ENGINE
  • Type: 500cc, 4-stroke, V-twin, liquid-cooled, 8-valve SOHC
  • Bore & Stroke: 82 x 47 mm
  • Torque: 42 Nm @ 6,000 RPM
  • Fuel Delivery: 46 mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse
  • Drive Train: Selectable 2w/4w shaft driven with Visco-Lok front differential
CHASSIS
  • Frame: SST
  • Front Suspension Type: McPherson
  • Front Travel: 7 in (178 mm)
  • Rear Suspension Type: TTI independent
  • Rear Travel: 9 in (228.6 mm)
  • Front Brake: 2 inboard hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: 25 x 8 x 12 in (635 x 203 x 305 mm)
  • Tires/Rear: 25 x 10/11(XT) x 12 in (635 x 254/279(XT) x 305 mm)
  • Wheels: Steel
DIMENSIONS
  • L x W x H (in): 94 x 46 x 45 in
  • L x W x H (mm): 2,387 x 1,168 x 1,143 mm
  • Wheelbase: 59 in (1,499 mm)
  • Seat Height: 34.5 in (877 mm)
  • Dry Weight: 685 lbs (311 kg)
  • Ground Clearance: 11 in (279 mm)
  • Rack Capacity/Front: 100 lbs (45 kg)
  • Rack Capacity/Rear: 200 lbs (90 kg)
  • Towing Capacity: 1,300 lbs (590 kg)
  • Fuel Capacity: 5.3 gal (20 L)
FEATURES
  • Instrumentation: Multi function gauge: Digital speedometer, digital tachometer, bar graph RPM, bottom bar numerical RPM, odometer, hour and tripmeters, diagnostic center, gear position, engine hourmeter, 4x4 indicator, temp./engine lights, electronic fuel gauge, low fuel light, auto shut off after 15 minutes, high/low beam indicator
  • Anti-Theft: D.E.S.S. (Digital Encoded Security System)
  • Storage: Rear storage 5.3 US gal (20 L) CRS (Convertible Rack System)
  • Electrical: Prewired for winch
  • Lighting: 2 fender mounted headlamps (35W) with tail light/brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Standard Color: Yellow, Viper Red
PACKAGE
  • XT Package Content Available: BRP XL 3000 winch, roller fairlead, wired remote control, cast aluminum rims, aggressive tread Carlisle‡ ACT Radial tires, heavy-duty front & rear bumpers, handguards
  • XT Colors: Yellow, Viper Red, Laurentian Green, Camo

Specifications

Engine
Engine Type Rotax 4-stroke, 8-valve SOHC
Displacement 500cc
Bore x Stroke 82 x 47 mm
Cylinders V-twin
Engine Cooling Liquid-cooled
Fuel System Fuel Delivery: 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension McPherson
Front Travel 7 in (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in (635 x 203 x 305 mm); Optional XT Package: Aggressive tread Carlisle‡ ACT Radial tires
Rear Suspension TTI independent
Rear Travel 9 in (228.6 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 10/11(XT) x 12 in (635 x 254/279(XT) x 305 mm); Optional XT Package: Aggressive tread Carlisle‡ ACT Radial tires
Frame SST
Dimensions/Capacities
Dry Weight 685 lbs (311 kg)
Front Rack Capacity 100 lbs (45 kg)
Rear Rack Capacity 200 lbs (90 kg)
Towing Capacity 1,300 lbs (590 kg)
Fuel Capacity 5.3 gal (20 L)
Ground Clearance 11 in (279 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in (2,387 x 1,168 x 1,143 mm)
Wheelbase 59 in (1,499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-Lok front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse
General
Speedometer Digital
Tachometer Digital
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light/brake light
Colors Yellow, Viper Red; Optional XT Colors: Yellow, Viper Red, Laurentian Green, Camo

Compare Models

 Print








Year 2008
Manufacturer Can-Am
Model Outlander Max 500 H.O. EFI 4x4
Style Utility
MSRP* $8,099.00
Chassis
Front Suspension McPherson
Front Travel 7 in (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in (635 x 203 x 305 mm); Optional XT Package: Aggressive tread Carlisle‡ ACT Radial tires
Rear Suspension TTI independent
Rear Travel 9 in (228.6 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 10/11(XT) x 12 in (635 x 254/279(XT) x 305 mm); Optional XT Package: Aggressive tread Carlisle‡ ACT Radial tires
Frame SST
Dimensions/Capacities
Dry Weight 685 lbs (311 kg)
Front Rack Capacity 100 lbs (45 kg)
Rear Rack Capacity 200 lbs (90 kg)
Towing Capacity 1,300 lbs (590 kg)
Fuel Capacity 5.3 gal (20 L)
Ground Clearance 11 in (279 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in (2,387 x 1,168 x 1,143 mm)
Wheelbase 59 in (1,499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-Lok front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse
Engine
Engine Type Rotax 4-stroke, 8-valve SOHC
Displacement 500cc
Bore x Stroke 82 x 47 mm
Cylinders V-twin
Engine Cooling Liquid-cooled
Fuel System Fuel Delivery: 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Digital
Tachometer Digital
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light/brake light
Colors Yellow, Viper Red; Optional XT Colors: Yellow, Viper Red, Laurentian Green, Camo
